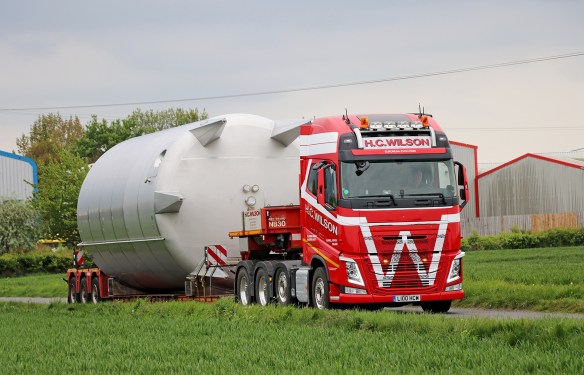

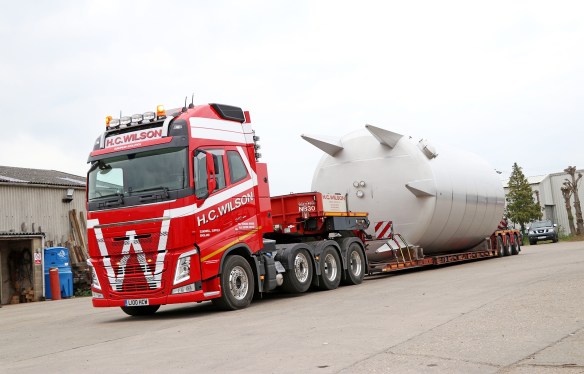

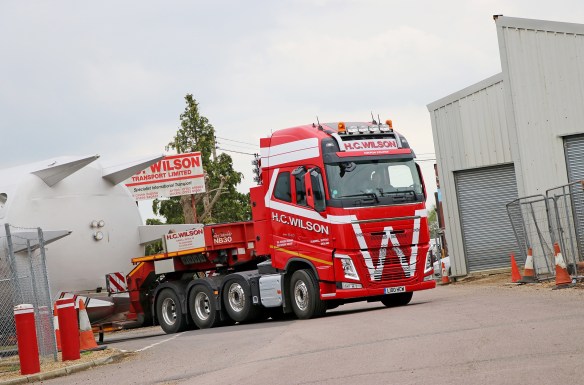

The Globetrotter XL 3,900mm wheelbase Tridem Pusher Axle tractor unit is powered by Volvo’s D13K engine, producing a maximum of 540hp. The FH was ordered with an I-Shift Crawler gearbox containing a direct top ratio of 19:1 and a deep multi speed reverse gear with a ratio of 37:1. A gearbox-mounted retarder also provides a substantial secondary braking system. The final drive tandem single reduction axles carry a ratio of 2.83:1.
The vehicle is rated for maximum 90-tonne operations, but will predominately work in the 55 to 60-tonne weight brackets. Both the front and pusher axles are nine-tonne air suspension units, the latter contributing to a rear bogie capacity of 32-tonnes.
“We’d previously bought our four axle tractor units from Holland, but this requirement is now better served through a dealer local to our business,” states Simon Wilson, Managing Director at H.C. Wilson Transport Ltd. “Volvo were genuinely interested to quote for such a vehicle and having a factory built four axle tractor unit was also a bonus, saving on purchase cost and delivery times.”
A Jost cast fixed fifth wheel, steel front bumper and Dura-Bright EVO alloy wheels are also included the specification.
Simon explains, “European work makes up two thirds of our total business and the regulations around German axle weights drive our choice of four-axle tractor units. I’m not a big fan of really big engines, but we have to balance power outputs and fuel consumption levels with terrain traversed and higher operating weights. We operated some early Volvo FHs that were sourced as used in the mid-1990s, but this is our first Volvo ordered new. We’re feeling our way with the vehicle at present and it’s early days. However, there’s been no complaints from the driver,” he adds.
